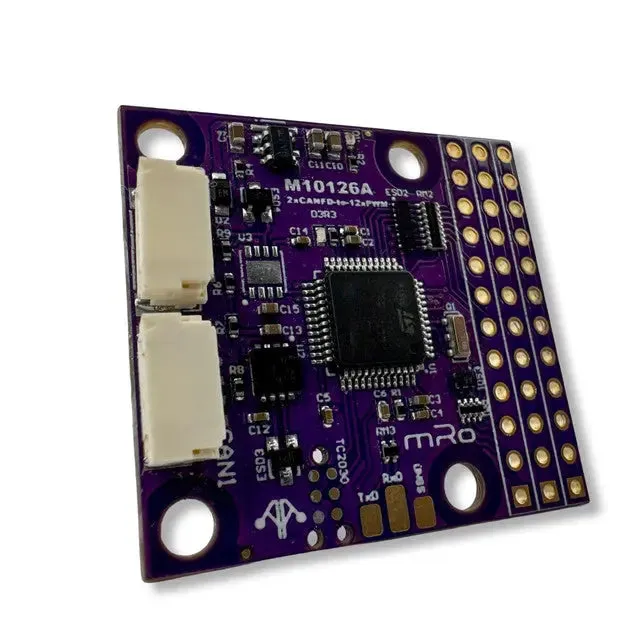

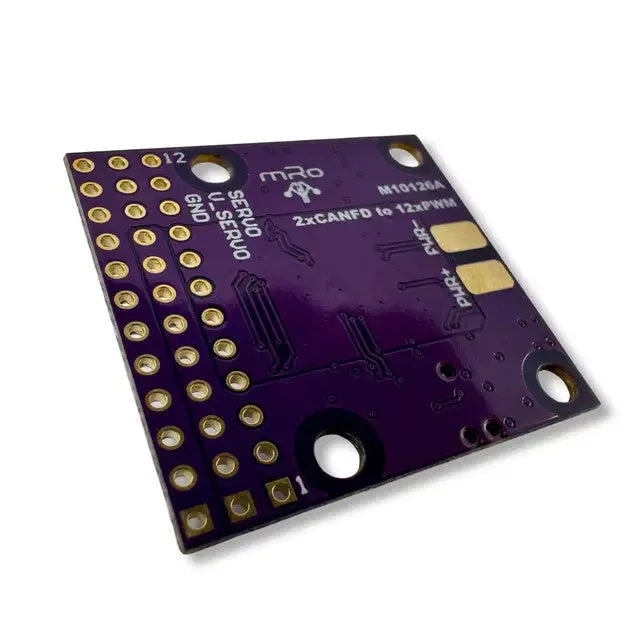

3DR CAN PWM ADAPTER
The 3DR CAN PWM Adapter is an essential component for expanding the capabilities of your UAV or robotics system. This compact adapter adds 12 PWM channels to any system, offering precise control over servos and other peripherals. Designed for easy integration, it operates at a voltage range of 4.8-5.2V and features isolated power pads to ensure stable and reliable servo power. With dimensions of 33mm x 31mm and a lightweight design, it fits seamlessly into any setup while providing high-performance control.
Available in two variants, the unsoldered pins version is ideal for custom configurations, offering flexibility to professionals and hobbyists alike. For quick installation, the pre-soldered pins version ensures a hassle-free setup. The CAN PWM Adapter is perfect for anyone looking to enhance their system’s control capabilities and expand their project’s potential.
We include two crucial cables to ensure a seamless setup from the moment you unbox:
- - 4-Pin JST-GH to 4-Pin JST-GH
- - 4-Pin JST-GH to 4-Pin JST-GH
Lead time is currently estimated for 6 weeks. Please if you need urgent assistance.
| Specification | Value |
| Dimensions | 33 mm x 31 mm |
| Weight | 3.5g, 6.32g with pins |
| PWM outputs | 12 |
| UART | 1x available via solder pads |
| Operating voltage | 4.8 - 5.2 V |
| Servo power | Isolated power pads |
|
Firmware (file link) |
