RUSHFPV GNSS MINI Specifications, Application, Features, and Description

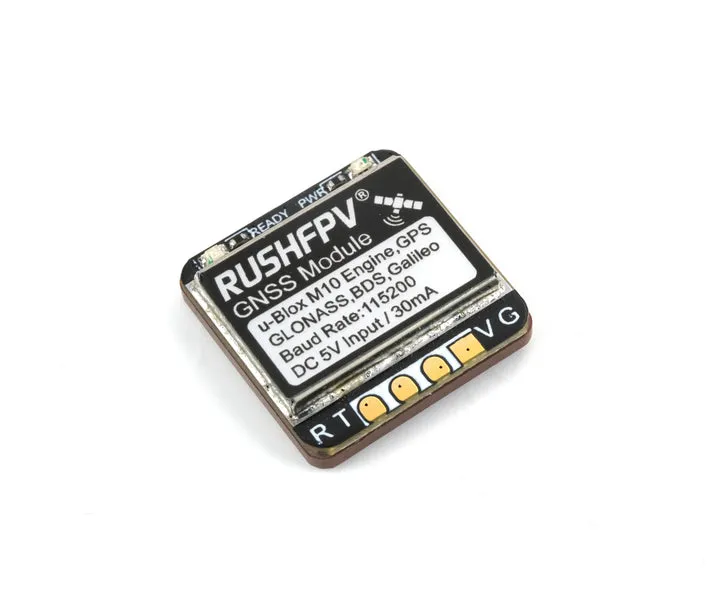

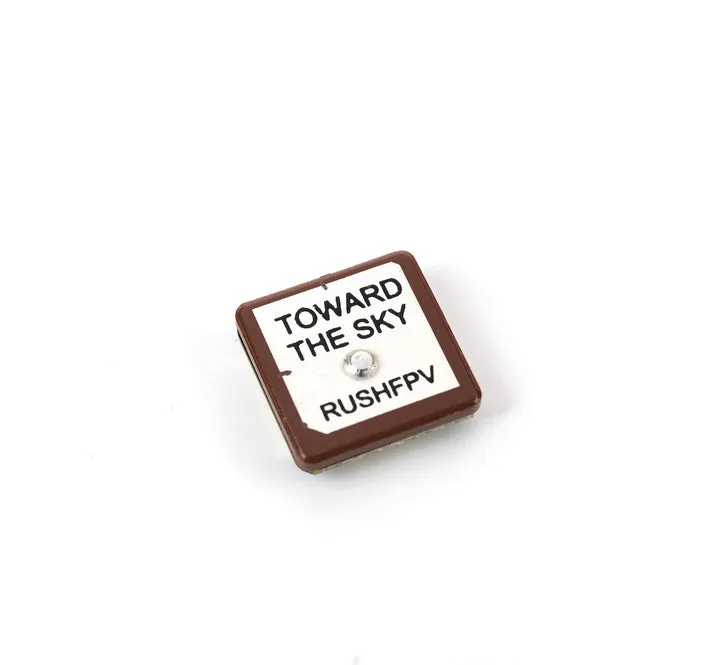

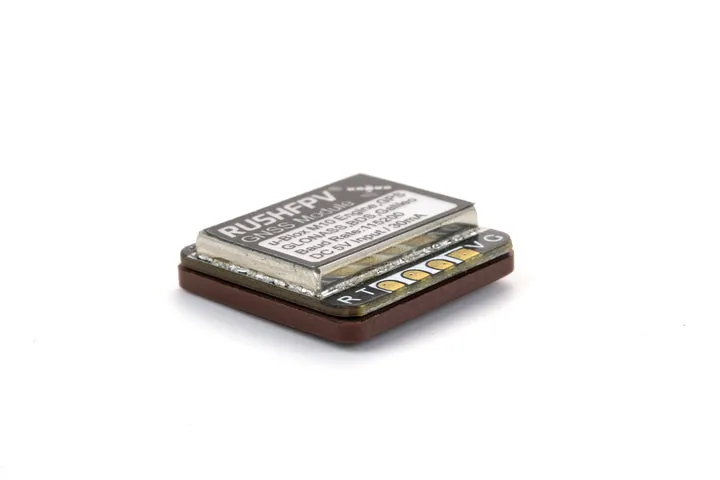

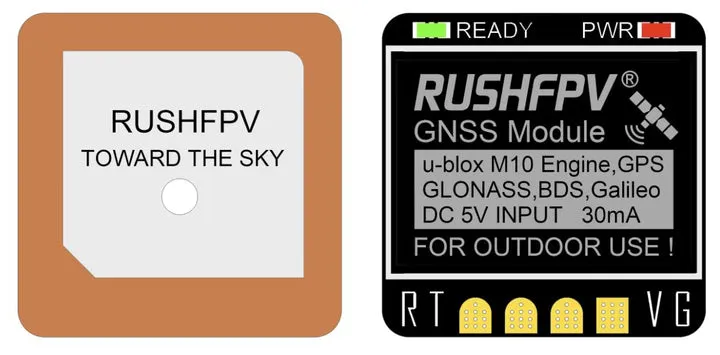

The RUSHFPV GNSS MINI is a compact and lightweight navigation module designed for small FPV drones. Here's a breakdown of its specifications, applications, features, and description:

Specifications:

• Type: GNSS (Global Navigation Satellite System) module
• GNSS Support: Supports multiple constellations like GPS, BDS, GLONASS, and GALILEO (confirmed by RUSHFPV website) - Improves positioning accuracy by utilizing signals from various satellite systems.
• Accuracy: High accuracy (typically a few meters) for precise position tracking.
• Update Rate: Up to 10Hz (according to Danger Crew, a retailer) - Provides frequent position updates for real-time performance.
• Interface: Likely SPI (common communication protocol for connecting to flight controllers - check official sources for confirmation)
• Voltage Input: 7-26V (wide range for compatibility with various battery setups) - (confirmed by RUSHFPV website)
• Dimensions: 18.0 x 15.0 x 5.0 mm (compact size for easy integration) - (dimensions based on retailer listing)
• Weight: Very lightweight (due to the small size)

Applications:

• FPV (First Person View) drones: Provides real-time position and navigation data for features like:
  • Return-to-Home (RTH): Brings the drone back to its starting point automatically.
  • Waypoint Missions: Allows you to program the drone to fly a specific route with pre-defined waypoints.
  • Flight Logging: Records the drone's flight path for later analysis or sharing.

Features:

• Compact design: Ideal for integration into small FPV builds with limited space.
• Multi-GNSS support: Offers improved accuracy and reliability by using signals from multiple satellite constellations.
• High accuracy: Provides precise position data for reliable flight control functionality.
• Fast update rate (up to 10Hz): Enables real-time tracking for features like RTH and smooth waypoint mission execution.
• Wide voltage input: Compatible with most battery setups in RC drones.

Description:

The RUSHFPV GNSS MINI is a versatile navigation module well-suited for space-constrained FPV drone builds. Its small size and lightweight design make it easy to integrate without adding significant weight. The multi-GNSS support enhances positioning accuracy, and the fast update rate allows for smooth and reliable flight control features. With a wide voltage input range, it can be powered by most battery setups commonly used in RC drones. This GNSS module is a valuable addition for pilots who want to unlock features like Return-to-Home, waypoint missions, and detailed flight logging for their FPV experiences.
