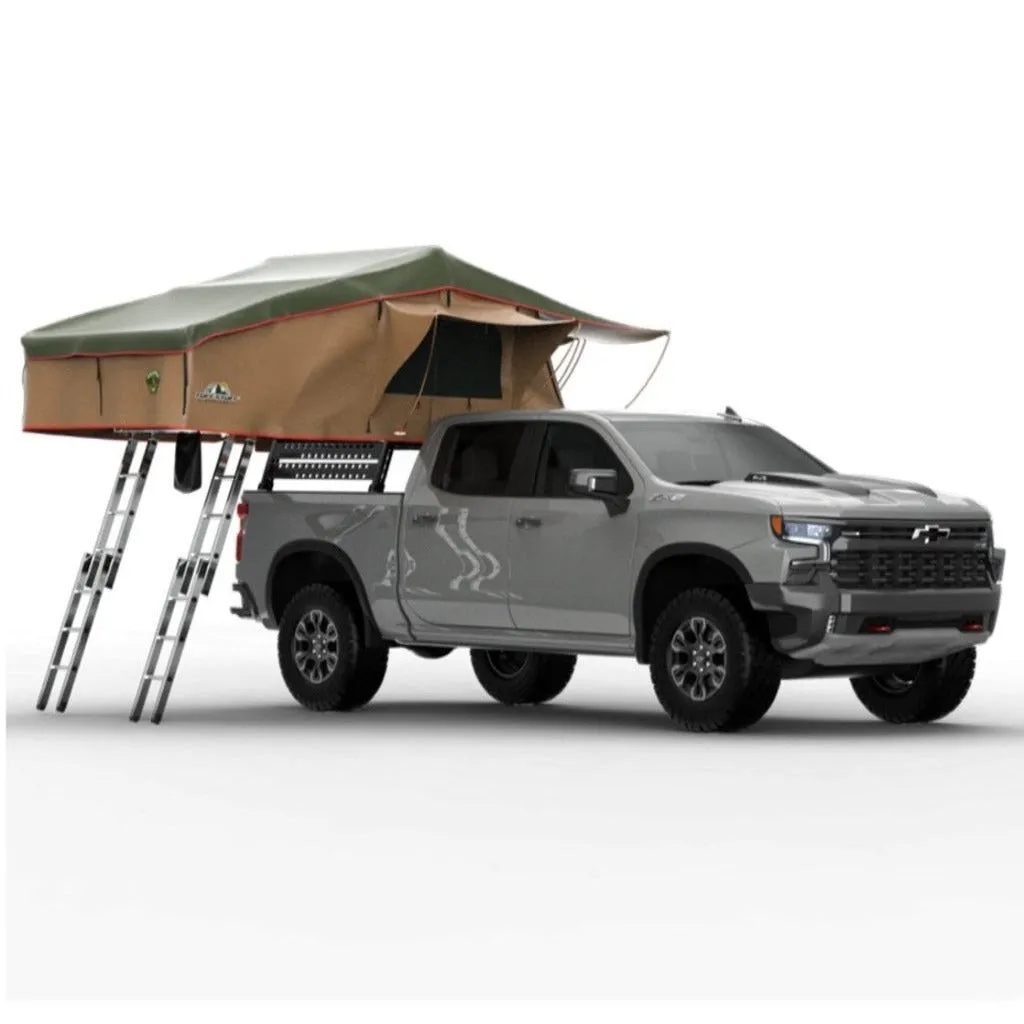

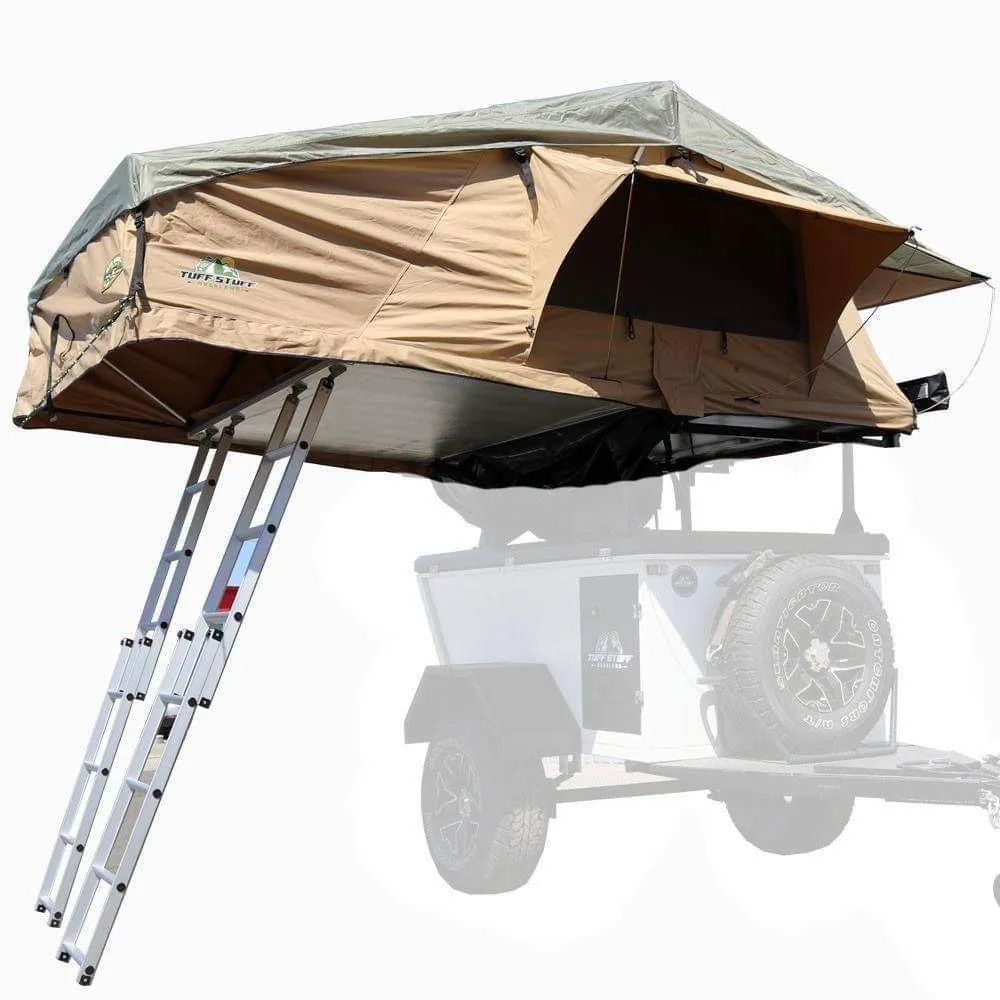

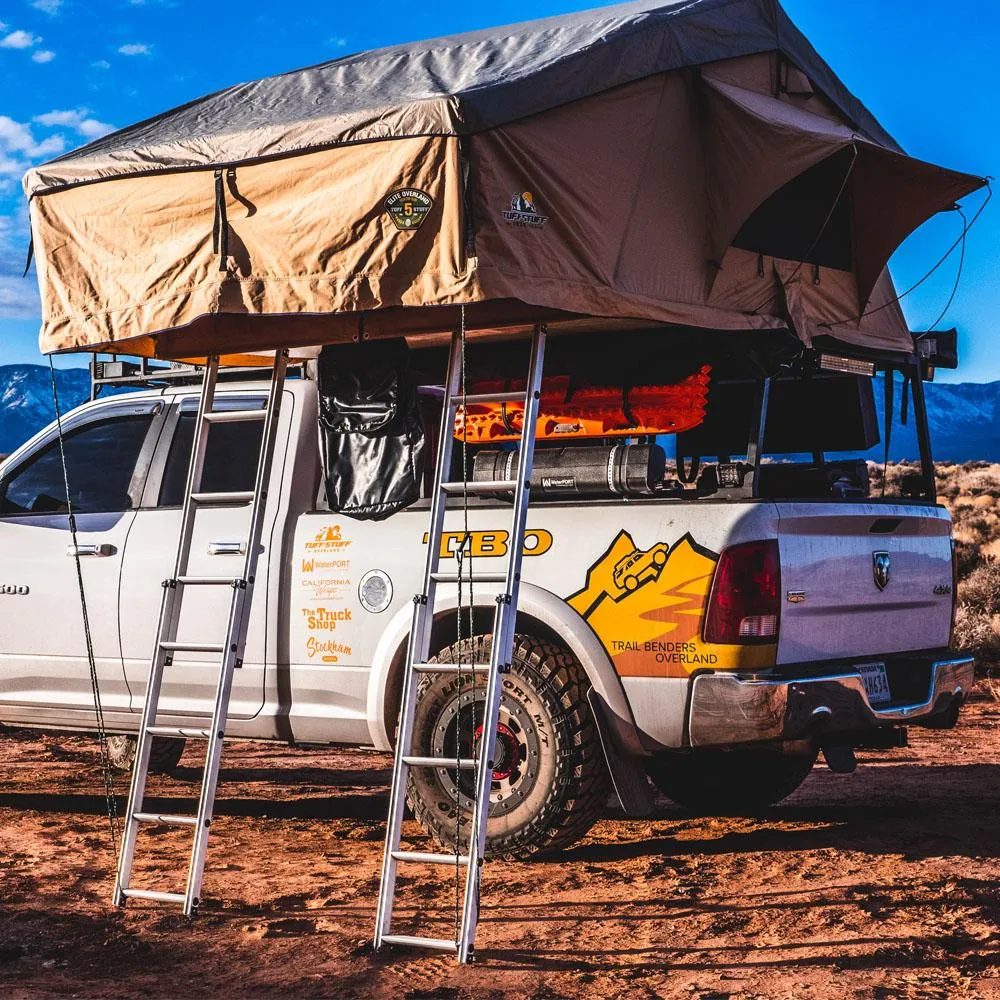

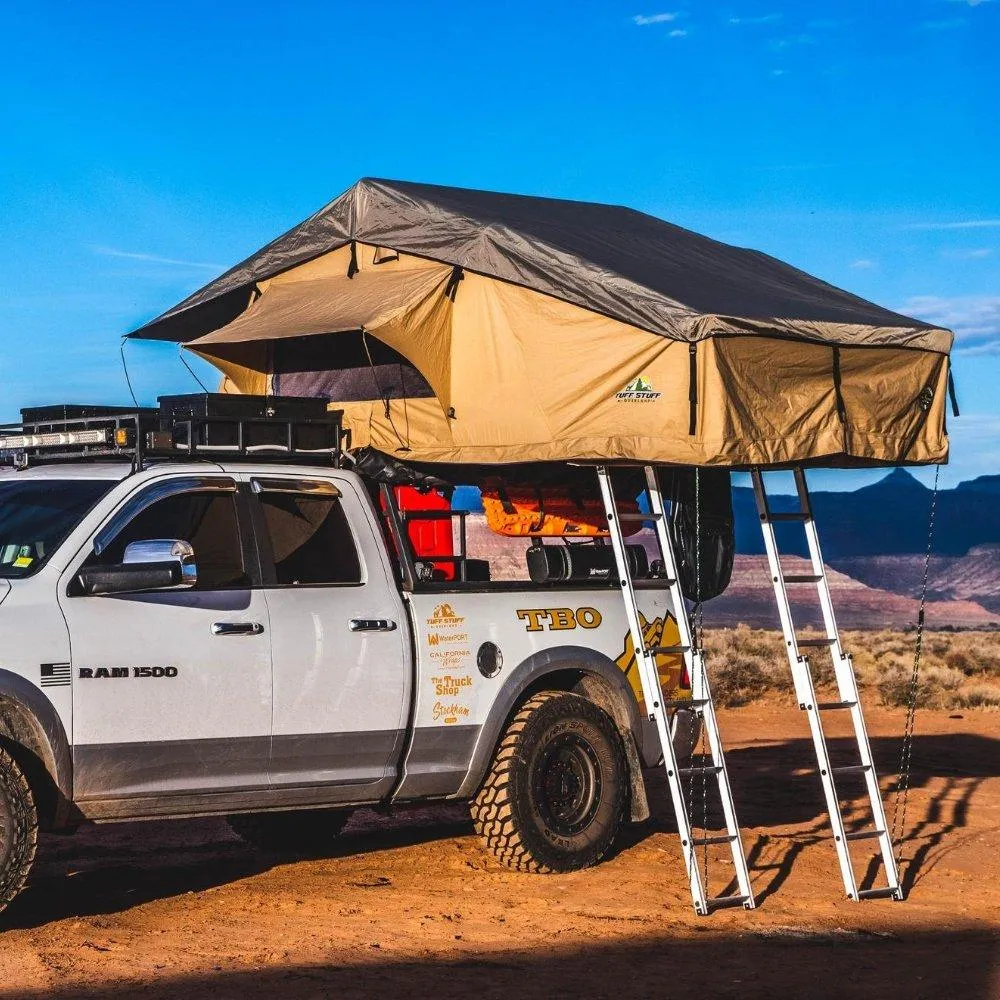

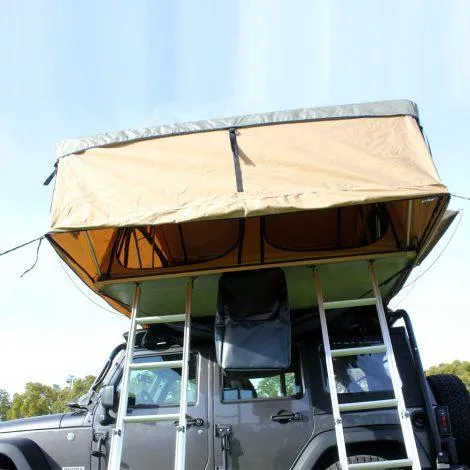

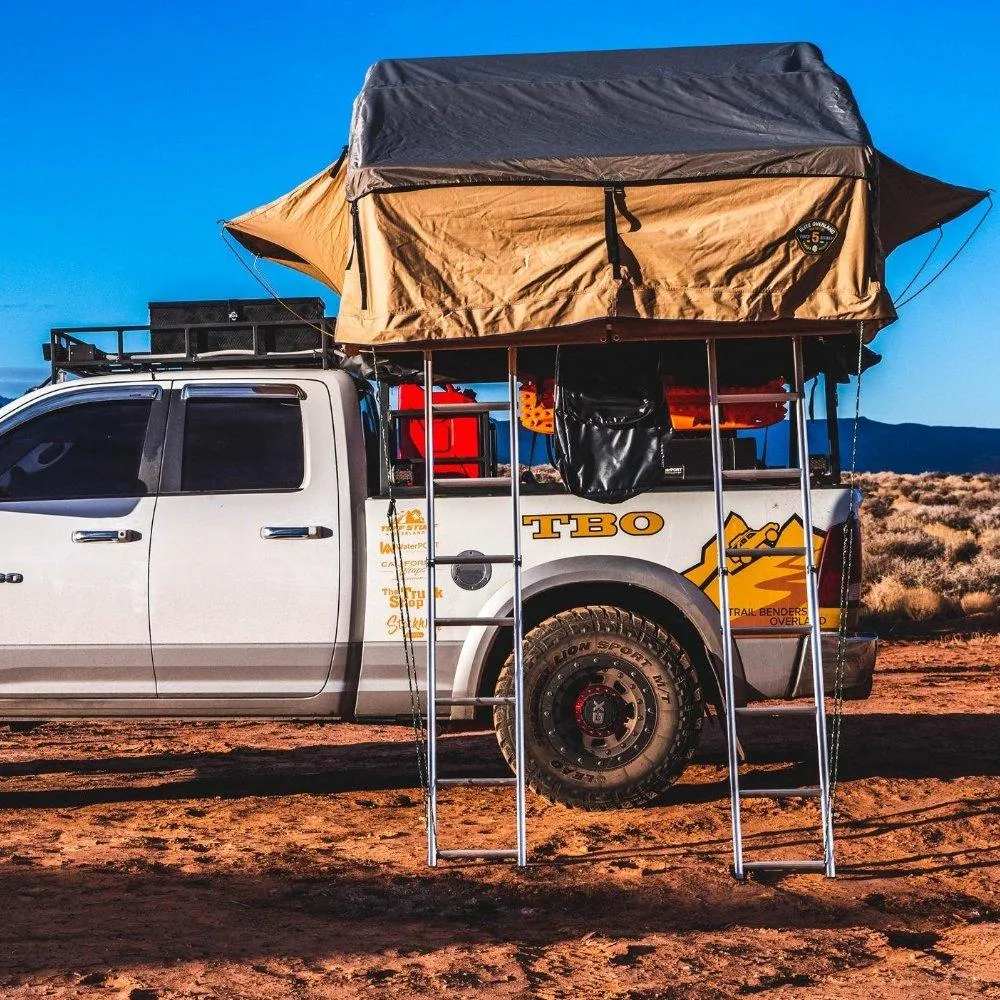

The Tuff Stuff Elite Roof Top Tent is capable of sleeping 4-5 people. Enjoy the comfort of privacy with the removable split wall and separate entry doors. A removable lower annex room is included to provide an even more elite experience.

Features & Benefits:

• Four-season tent with room for five people
• Massive 96 x 77-inch mattress (bigger than a California King) with a washable cover
• Manufactured from high-quality 280D poly-cotton windproof fabric

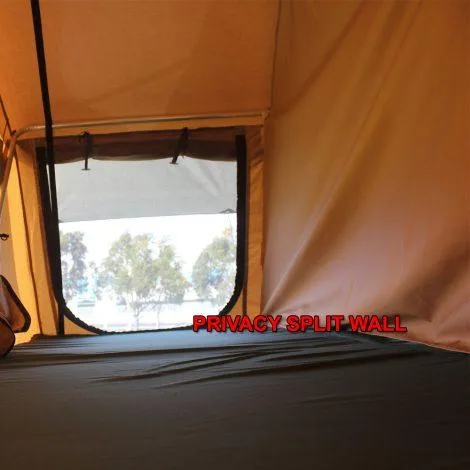

• Removable internal divider splits the tent into two separate spaces
• Heavy-duty YKK zippers
• Includes a poly-oxford 420D rain fly with the best water shedding ability on the market
• Pull out overhead veranda

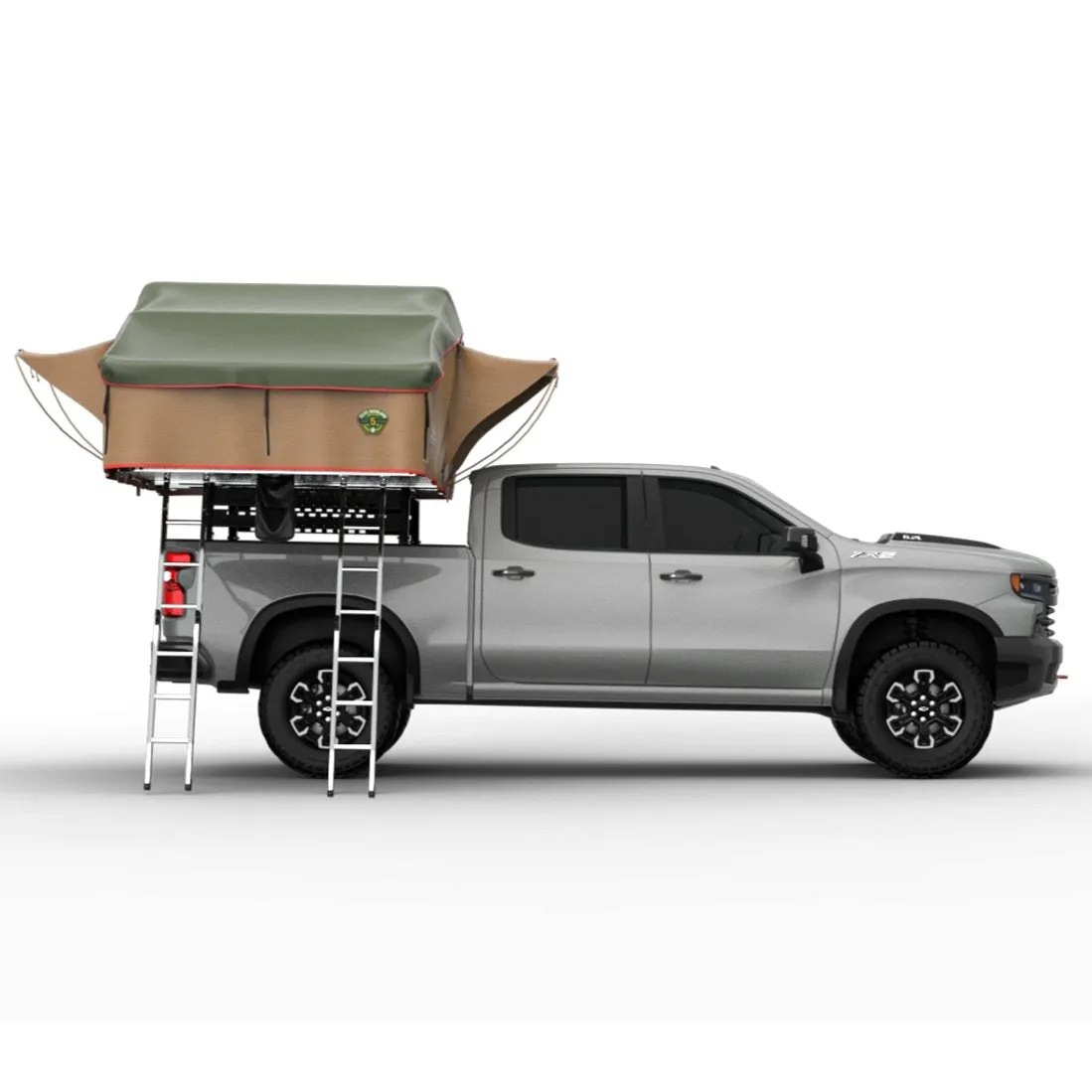

• Unfolds from either side of the vehicle (side or rear)
• All aluminum frame, ladder, and roof rack mounts
• All necessary hardware for complete installation (including tools)
• Heavy-duty PVC driving cover

Includes:

• 2 qty Sliding Ladders
• 2 qty Entry Doors Rainfly
• Black PVC Cover Annex Room w/ floor
• 2.75-inch mattress
• 1 qty Shoe bags that slide into the tents railing for outdoor storage
• Under tent storage hammock that can be mounted inside or outside of the tent
• Installation hardware and necessary tools

Specifications:

• Actual Weight: 194 lbs
• Weight Capacity: 800 lbs
• Dimensions: L/W/H
• Folded Closed: 79 x 48 x 16 inches
• Opened:79 x 96 x 52 inches
• Open w/ Overhang: 132 x 79 x 52 inches
• Distance between mounting rails: 32 inches
• Season: 4 season

Mattress Footprint:

• 77 x 96 inches
• 2.75 inch thick mattress

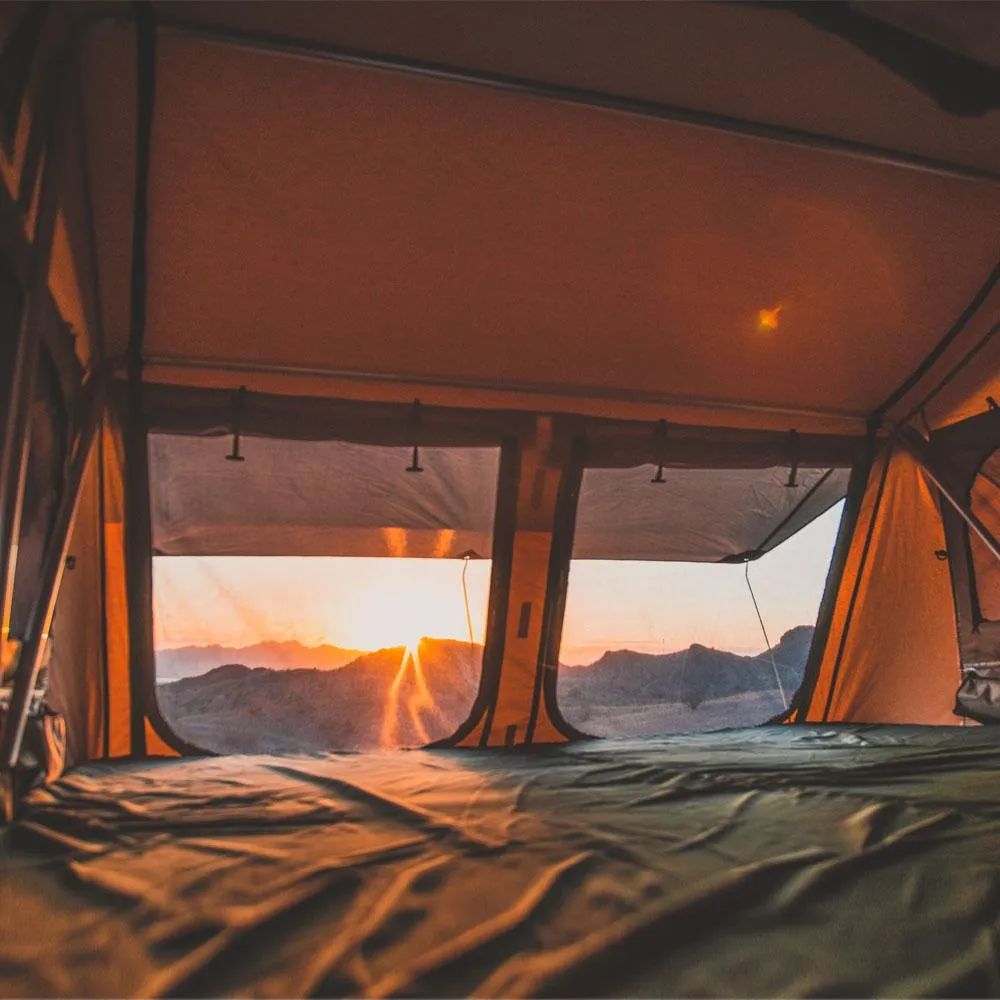

Windows:

• 6 including the doors
• "No see um" mosquito mesh w/ inner/outer cover for cold/wet weather
• Taped seams to prevent moisture leaching in through the seams

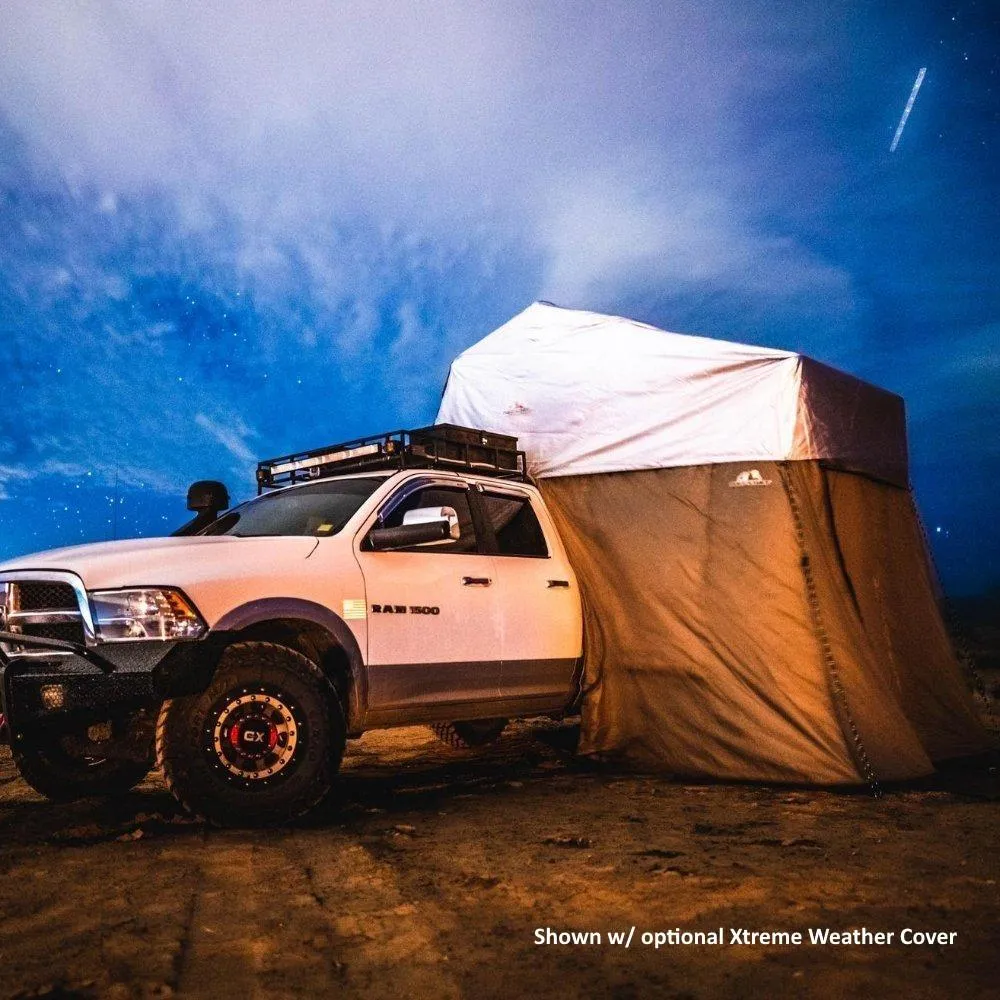

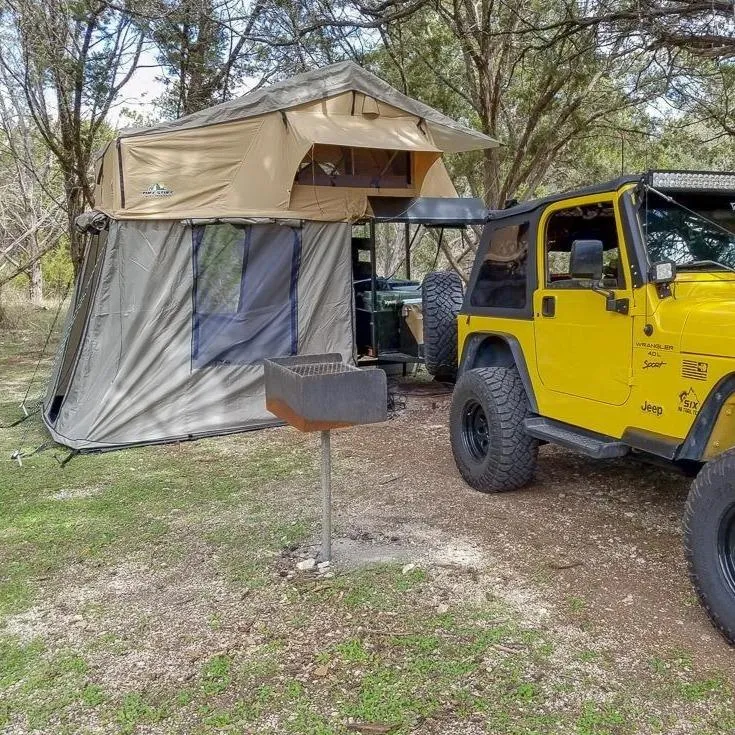

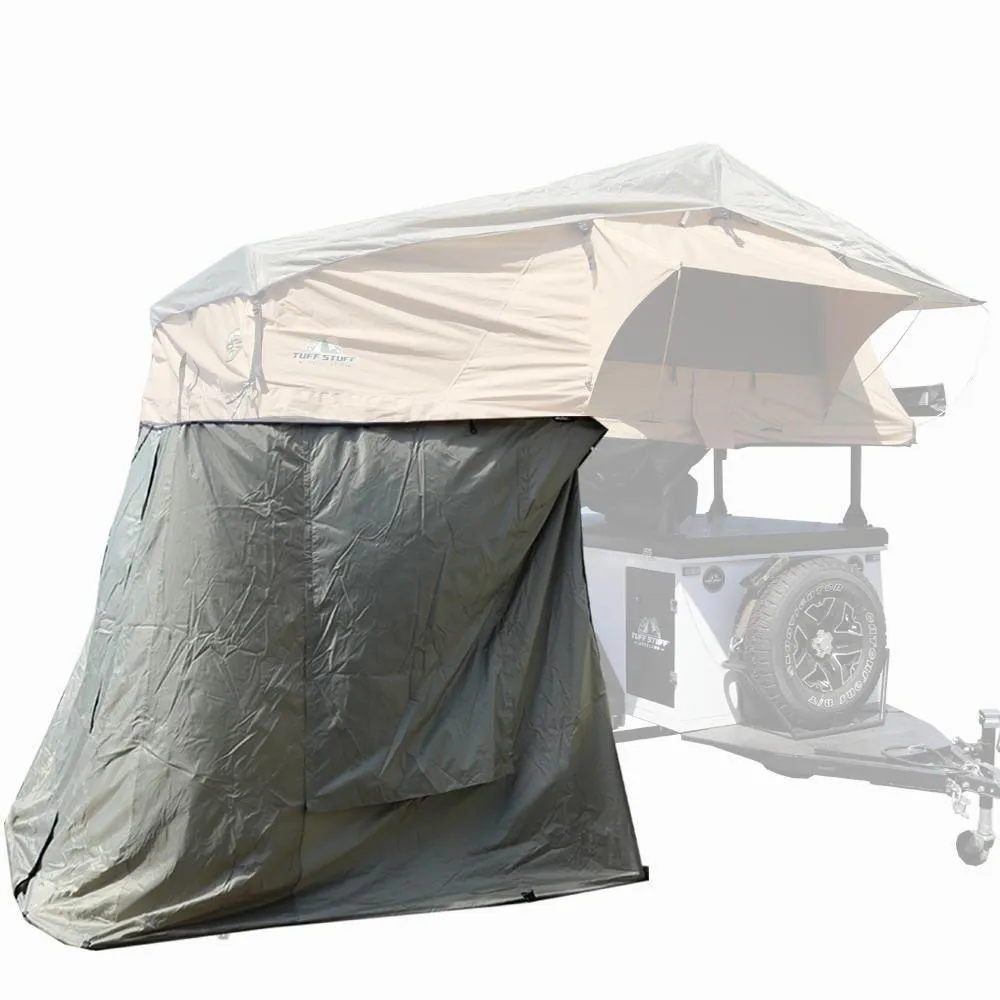

Annex Room (Included):

• 113 x 90 inches
• 420D Oxford side walls & 1000D PVC floor
• Taped seams to prevent moisture leaching in through the seams

Base:

• Welded aluminum 2-inch frame w/ aluminum sheets (top & bottom)
• Insulated between joists to keep warm air inside

Internal Frame:

• 1" diameter aluminum poles
• 420D oxford fabric coated

Tent Material:

• 280G Cotton/Poly Rip-Stop
• Polyurethane impregnated cotton/canvas for maximum waterproof/water shedding
• Taped seams to prevent moisture leaching in through the seams

Rainfly:

• 420D oxford polyurethane coated for maximum waterproof/water shedding,
• Taped seams to prevent moisture leaching in through the seams

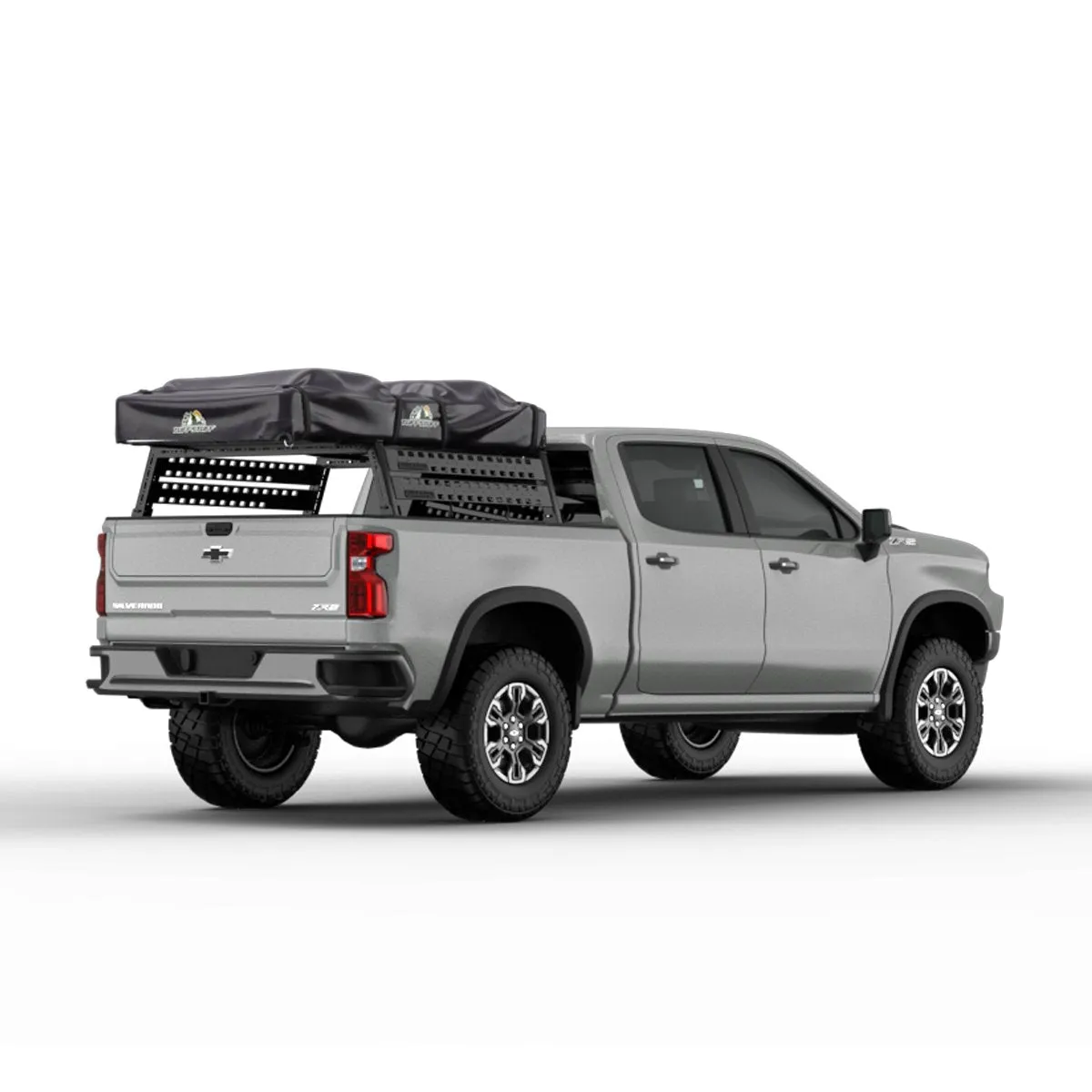

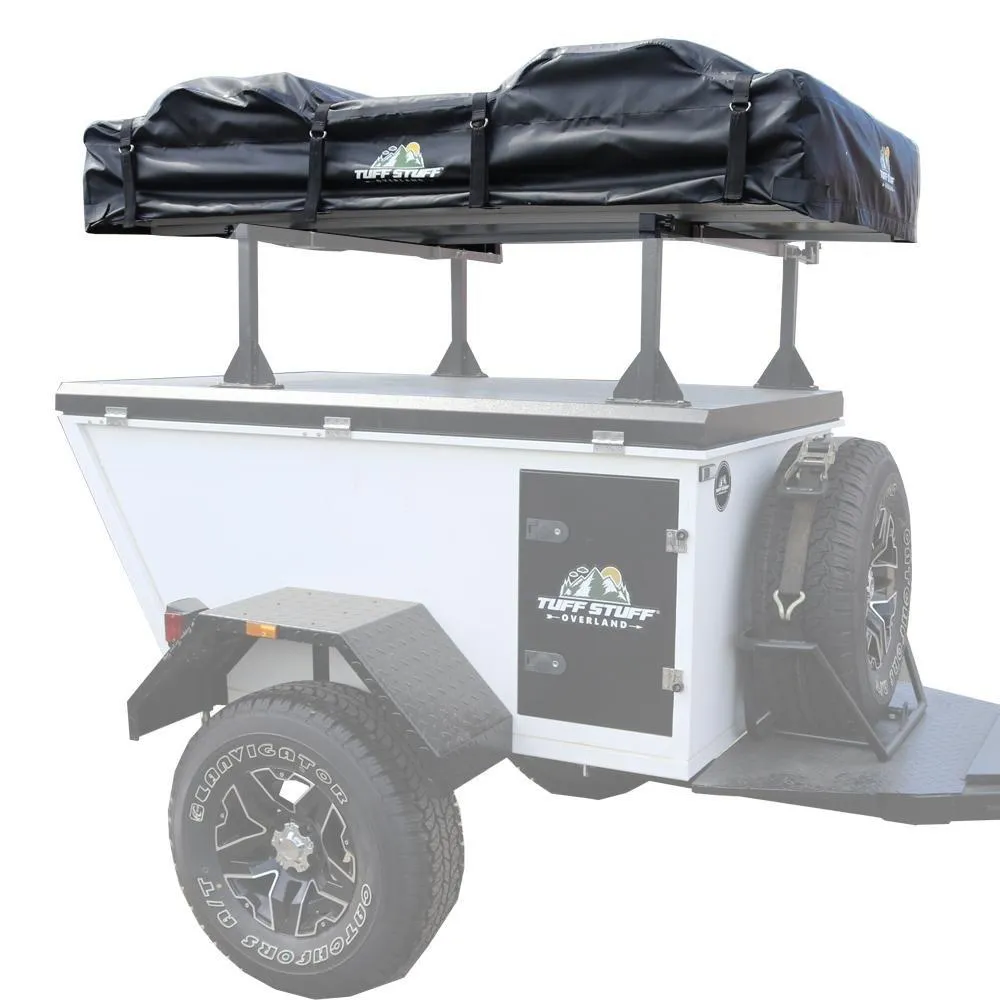

Driving Cover:

• Black, 1000D PVC waterproof w/ heavy duty YKK zippers
• Zips on 3 sides/Slides into tent base on 4th side

Installation Notes:

• Install time is approx 1-2 hours with 2 people. Detailed instructions included.
• Annex room zips on after the tent has been installed.
• All necessary spikes included.
• All necessary hardware included (even the tools) to mount to most all roof racks (using the custom extruded aluminum channel system).
• Ideal mounting height for the tent would be 76″-78″ above the ground to allow for the ladder to extend and annex to hang to the ground.

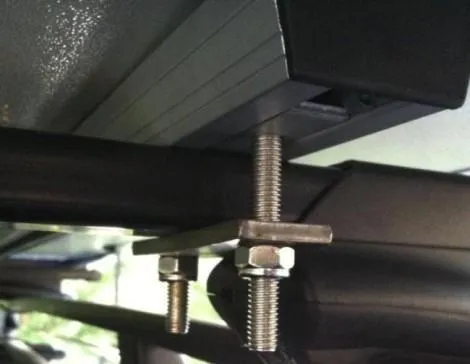

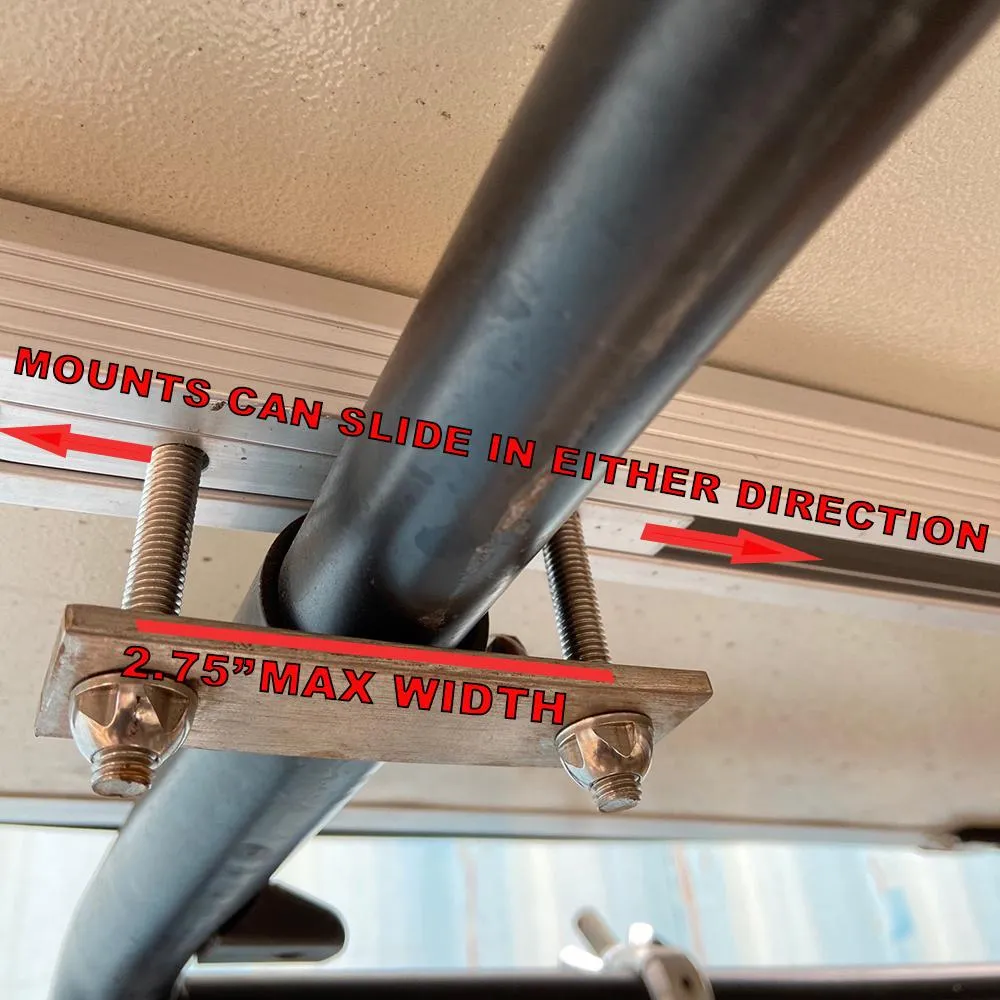

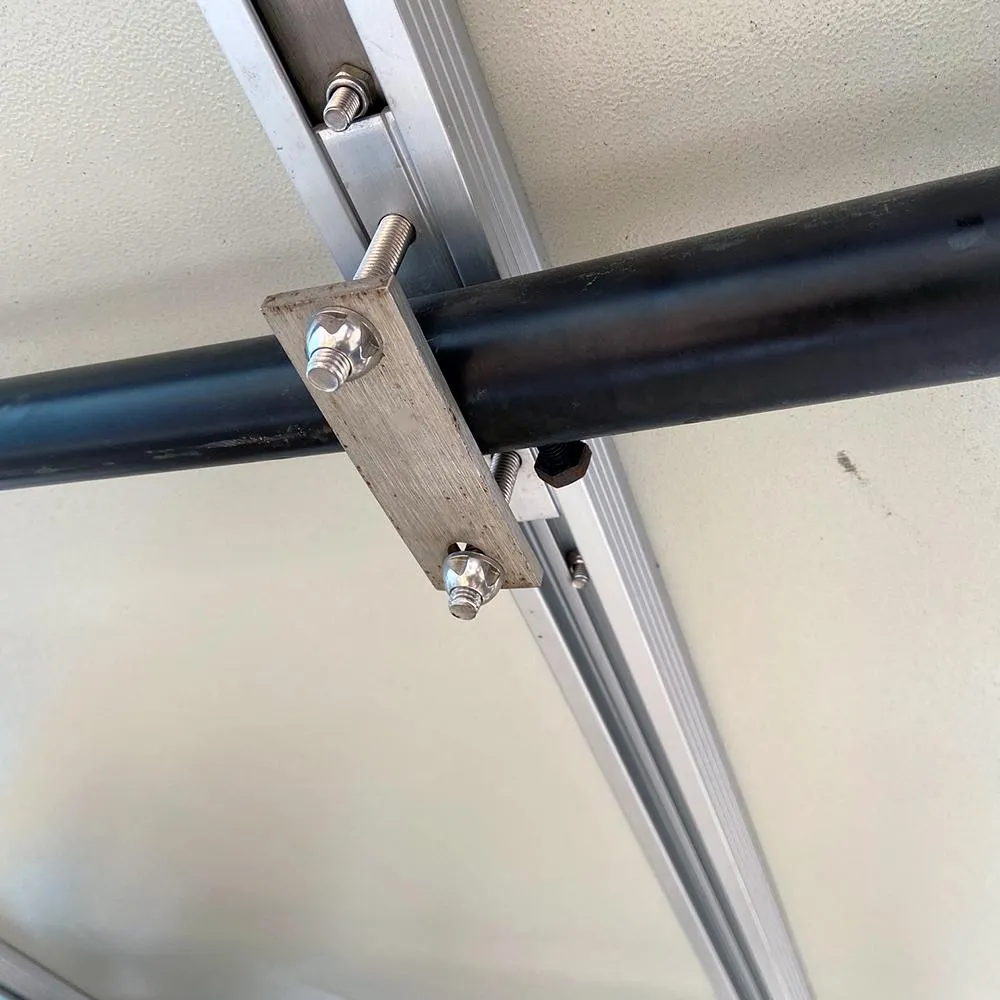

**Tent mounts slide In the lower mounting rail to accommodate any crossbars (left to right on the vehicle) with a spread of up to 52". We recommend your crossbars (left to right) are no more than 45" apart for optimal support. The included lower brackets will accept up to a 3.25" wide crossbar- Crossbars wider than 3.25" will require new brackets to be fabricated. Please see photos of the provided mounting brackets for a better idea of what to expect.**

Please do not fabricate your mounting rails before you receive your tent. It never ends up well.

Please Note: Must provide your own roof rack or base for tent to bolt to
