DESCRIPTION

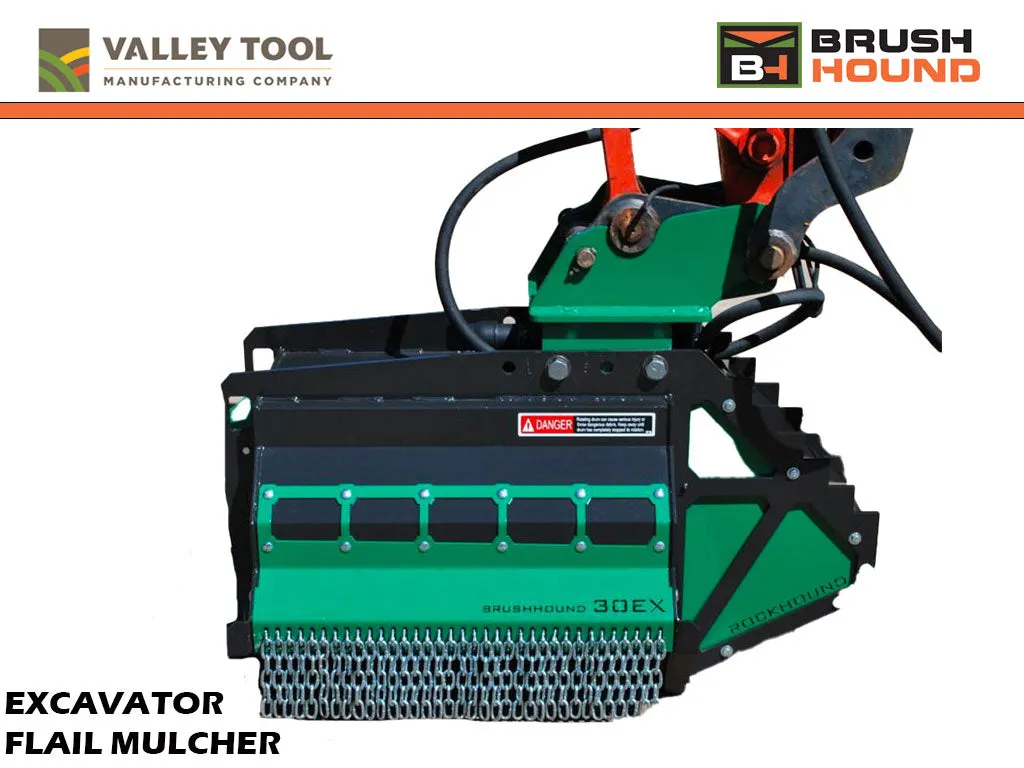

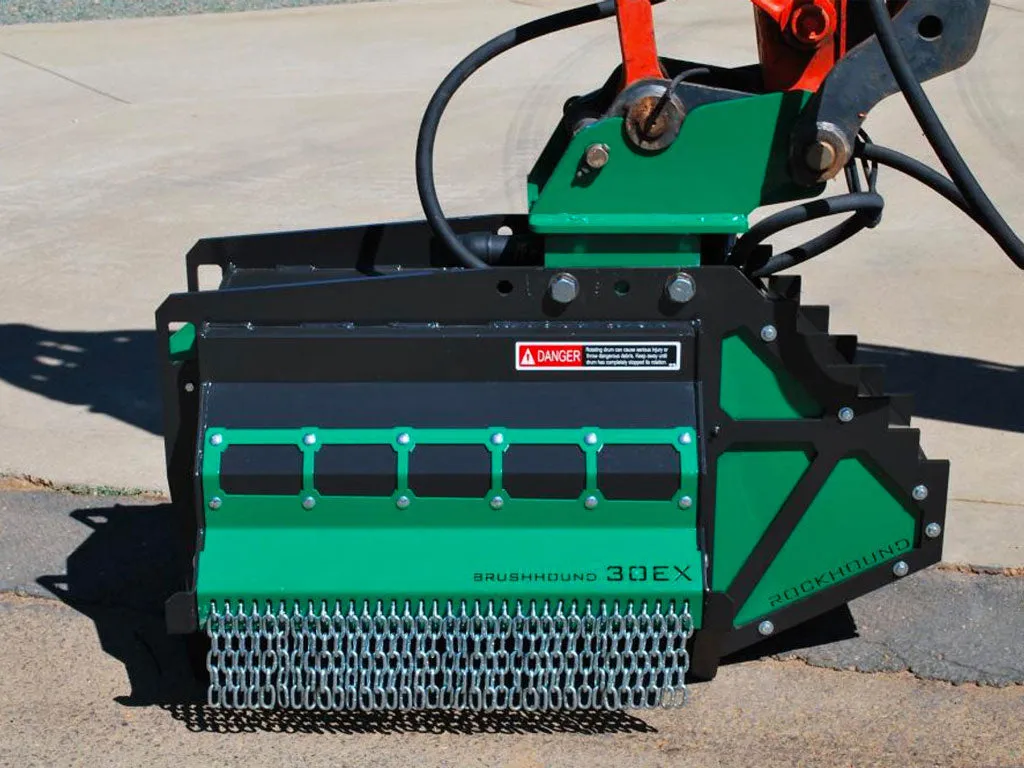

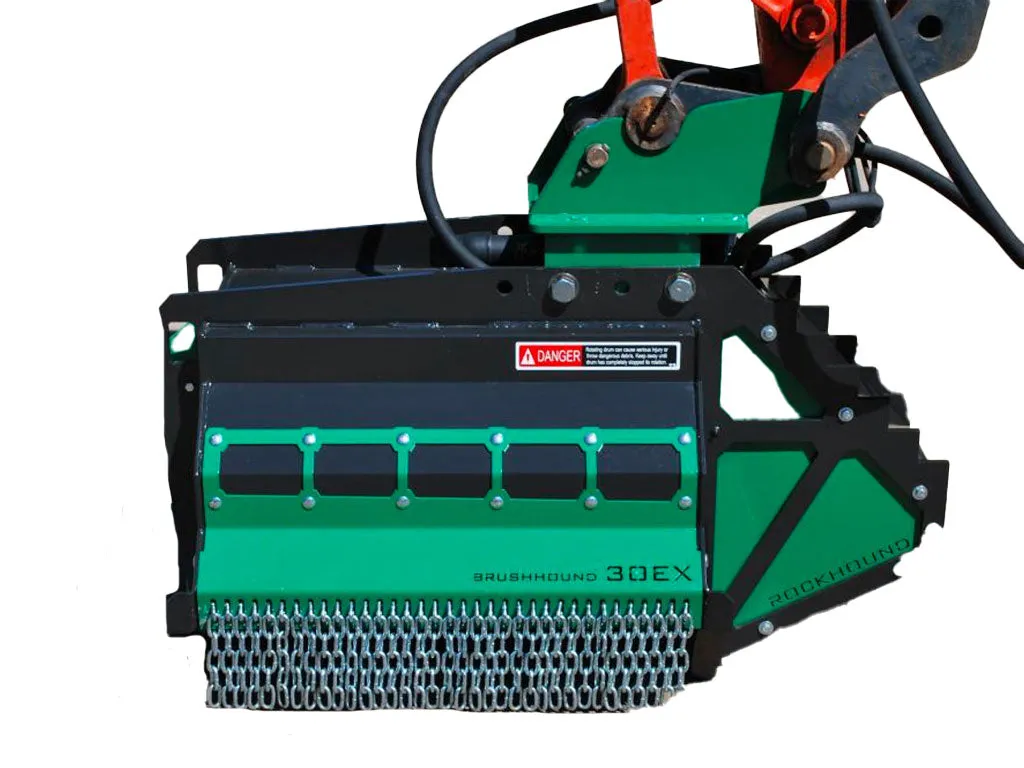

30EX Excavator Flail Mower

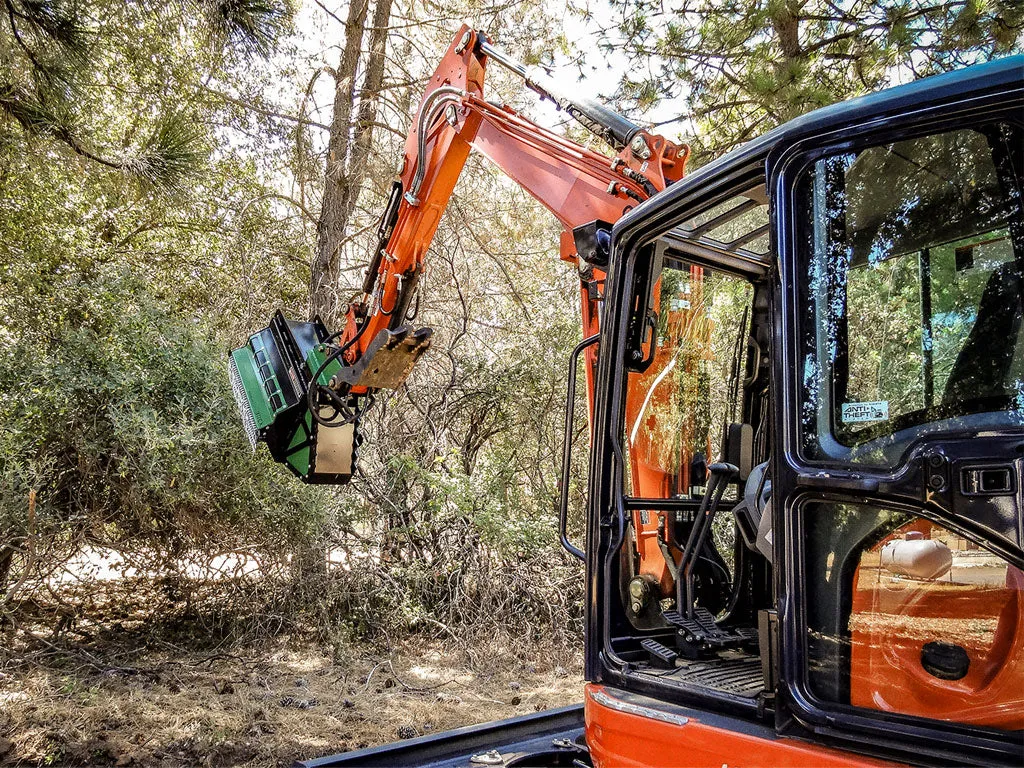

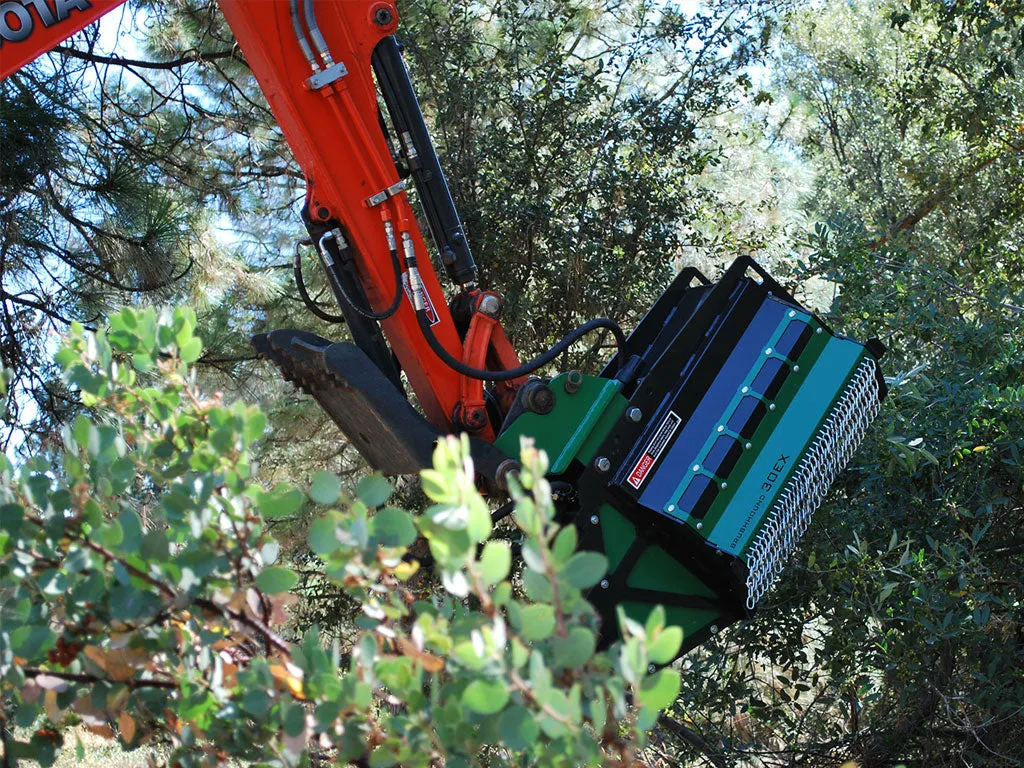

Tough, lightweight and versatile, the 30EX Brush Mower safely cuts and mulches small trees, grass and brush. It easily attaches to compact excavators and backhoes to quickly convert them into long-reach boom mowers to clear high vines and trees to the ground. Its size and design maximizes cutting and mulching muscle while saving energy.

This 792-pound shredder is engineered to last. It utilizes the same powerful cutter drum as its bigger cousin, the 40EX Hammer-Head, for durability and toughness. Its 30-inch width and 18 2.25-pound knives combined with 9 2-pound center knives provide maximum cutting capability for even the toughest jobs.

EXCAVATOR SIZE: 8000-13000 LBS
CUT WIDTH: 30"
WEIGHT: 792 LBS.
HYDRAULIC RANGE NEEDED: 15-38 GPM
BRUSH CAPACITY: 3.5"

FEATURES

Bolt-on Excavator Mount: Every model includes excavator-specific mount.

Adaptability: Mount to most mini and compact excavators or backhoes 9,000 to 13,000 pounds.

Composite Dampener Washer: Isolates operational vibration and increases drive component lifespan.

Wire Guards: Anti-wrap design protects bearings and seals from debris.

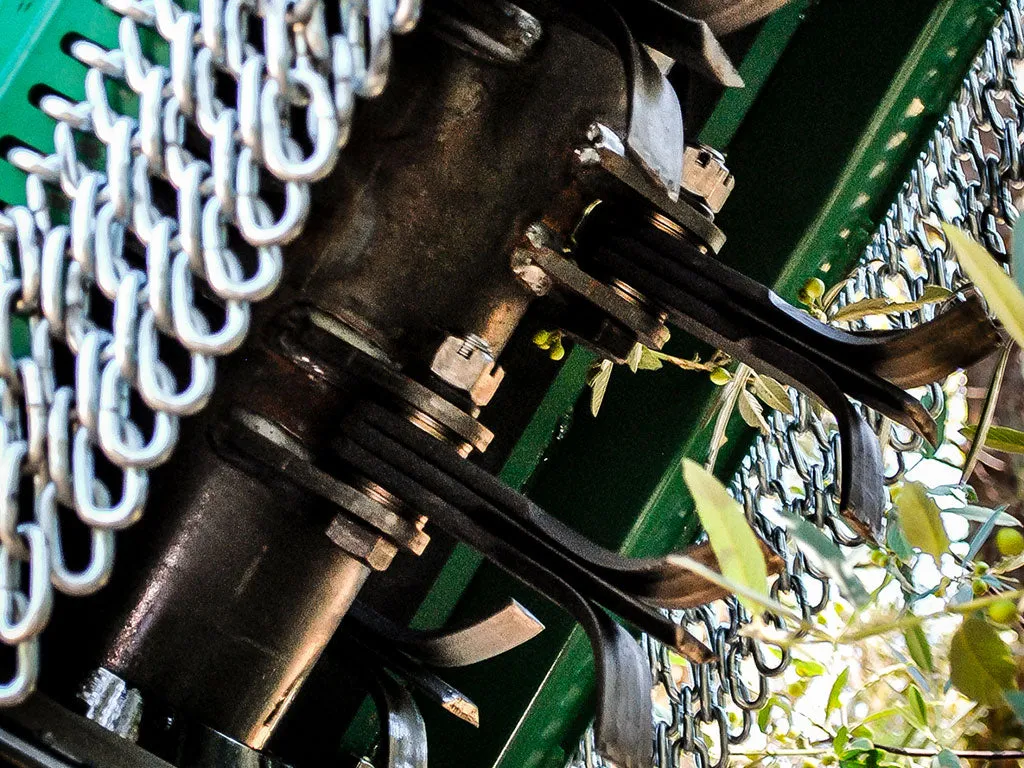

Triple Flail Knives: Reversible triple knife 2.25-pound side slicer knives plus a 2-pound straight knife provide 7 pounds of knives in each station adding power and extra cutting surface.

Bolt-on Reversible Flails: Extends the life of the flails by utilizing second edge.

Direct Drive Design: Maximizes power transfer to cutter drum.

SAE Compliant: Exceeds all SAE J1001 standards for flail mowers.

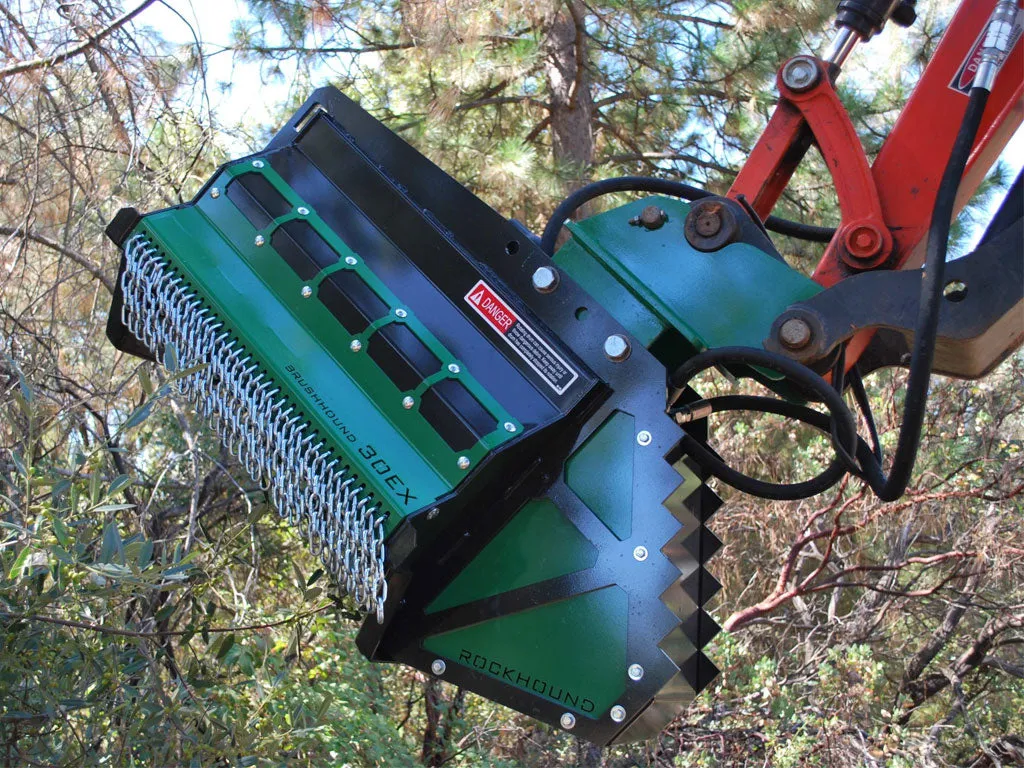

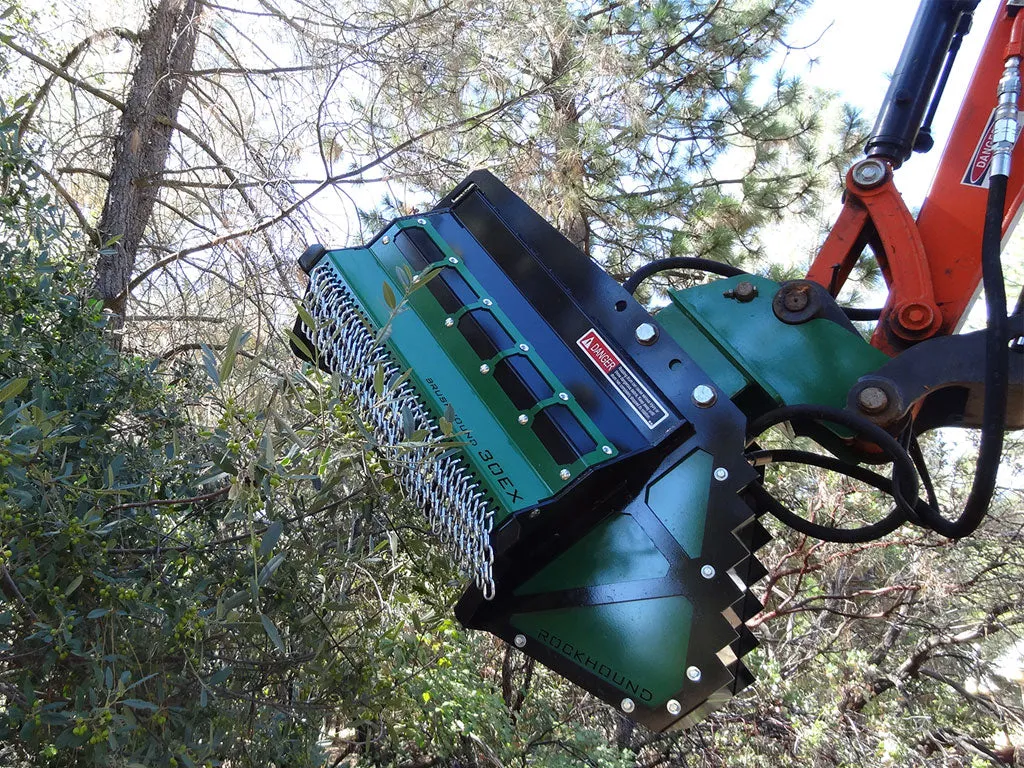

Standard Thumb Saddle: Serrated edge works with excavator thumb to remove debris.

Single-Piece Frame: Modern engineering increases strength by 25%.

Hoses and Couplers: 100” Hydraulic hoses and flat face couplers are complementary.

SPECS

Power Unit Size	8,000 - 13,000 lbs.
Cutting Width	30"
Overall Width	56"
Weight	792 lbs.
Number of Knives	18-Slicer \| 9-Center
Brush Capacity	3.5"
Hydraulic Flow Req	12 GPM
Motor Type	Gear
